6  Laser Safety

READ THIS SECTION COMPLETELY BEFORE OPERATING THE DEVICE

6.1 Regulatory Compliance

The Kortx™ is certified as a Class 2 Laser Product in accordance with:

  • FDA 21 CFR 1040.10 and 1040.11 (US)
  • IEC 60825-1:2014 (International)
  • BS/EN 60825-1:2014/A11:2021 (EU/UK)

6.2 Laser Safety Instructions

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

6.2.1 Laser Aperture Location

Aperture Safety
  • This Laser Product is designated as Class 2 during all procedures of operation.
  • DO NOT look directly into the aperture.
  • DO NOT block or obstruct the aperture during operation.

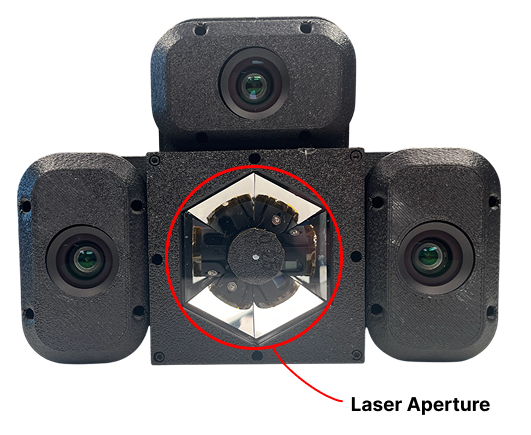

Laser Aperture Location

The laser aperture is located on the center of the device as shown above.

6.2.2 General Safety Precautions

To ensure safe operation of the Kortx™, observe the following precautions:

General Precautions
  • DO NOT stare directly into the laser beam or laser aperture
  • DO NOT point the laser at other people, animals, or reflective surfaces
  • DO NOT use optical instruments (magnifiers, telescopes, etc.) to view the laser beam
  • DO NOT allow children to operate this device without supervision

6.2.3 Proper Use Guidelines

  1. Always operate the device according to the instructions in this manual
  2. Keep the laser aperture clean and free from obstruction
  3. Do not operate the device if the housing is damaged or the cover seal is broken
  4. Take appropriate precautions to avoid reflections from specular surfaces such as mirrors or polished objects

6.2.4 Service and Maintenance Restrictions

NO USER SERVICEABLE PARTS INSIDE
  • Service and repair must be performed ONLY by factory-authorized technicians
  • Do not open, modify, or attempt to repair this device
  • Opening the device or removing protective housings will void the warranty and may expose you to hazardous laser radiation
  • Contact Summer Robotics for all service and repair needs

6.2.5 Maintenance

No scheduled maintenance is necessary to keep this product in compliance with laser safety regulations.

If the device becomes defective or damaged:

  1. STOP using the device immediately
  2. DO NOT attempt to repair it yourself
  3. Contact Summer Robotics at support@summerrobotics.ai for factory service

6.2.6 In Case of Malfunction

If you experience any of the following conditions, discontinue use immediately and contact technical support:

  • Unusual sounds
  • Visible damage to the housing or laser aperture
  • Device does not power on or operates intermittently
  • Any safety labels become damaged or illegible
  • Device has been dropped or subjected to impact
Malfunction Warning

Operating a defective laser product may expose users to hazardous levels of laser radiation. When in doubt, contact Summer Robotics for evaluation.

6.3 Laser Parameters

The following table specifies the laser characteristics of the Kortx™:

Table 6.1: Laser Specifications
Parameter Specification
Wavelength

450nm
Laser Power for Classification

<5.0mW
Beam Diameter

3.0mm x 1.1mm FWHM
Divergence

6.5mRad x 3.5mRad
Mode of Operation

Scanned
Pulse Rate

16Hz - 28Hz
Classification Standard

IEC 60825-1:2014
Note

All measurements taken at the laser aperture during normal operation.

6.4 Product Labeling

The Kortx™ is labeled in compliance with FDA 21 CFR 1040 and IEC 60825-1:2014 standards. The following sections show the required labels and their locations on the device.

6.4.1 Required Safety Labels

Explanatory Label

Manufacturer and Certification Label

Protective Housing Label

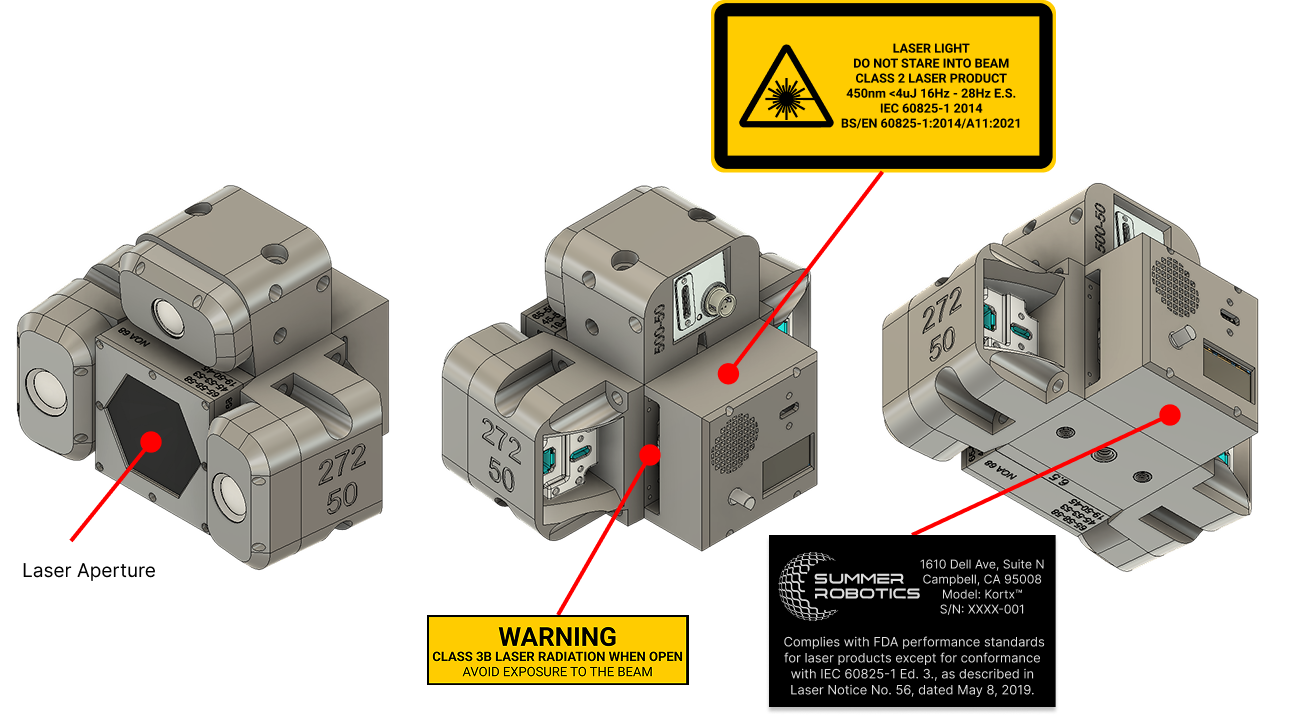

6.4.2 Label Locations

The following diagram shows where safety labels are positioned on the Kortx™:

Label Position Diagram
